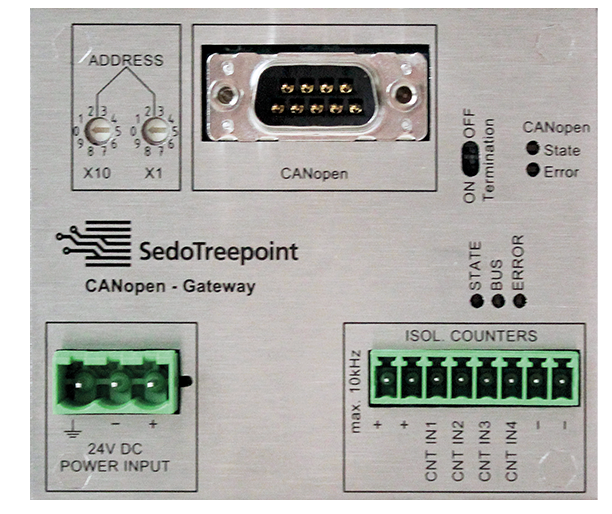

The modular high-performance system is optimized for textile dyeing and finishing machines automation. It can be equipped with CANopen®, PROFIBUS DP® and Modbus RTU interface. One gateway contains up to 6 IO-boards in an aluminum rail housing.

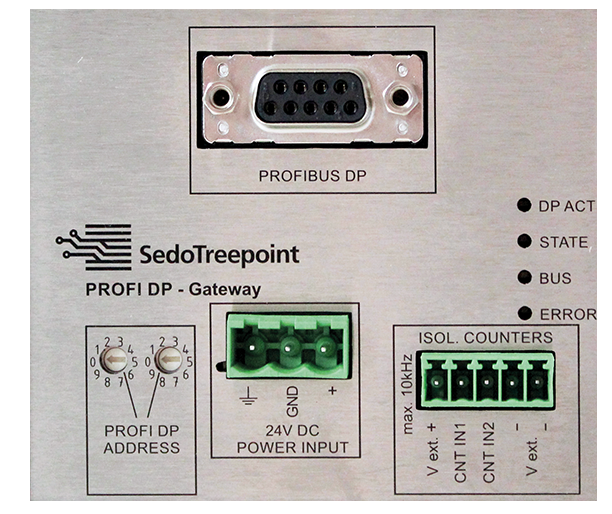

Profibus DP Gateway

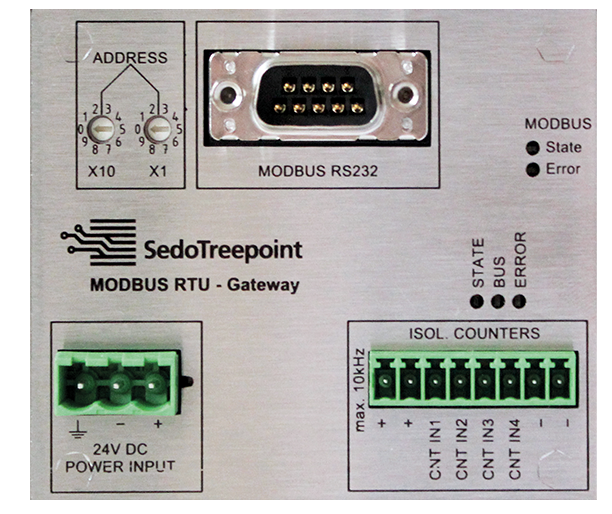

Modbus RTU Gateway
Analog 4 IO TIU

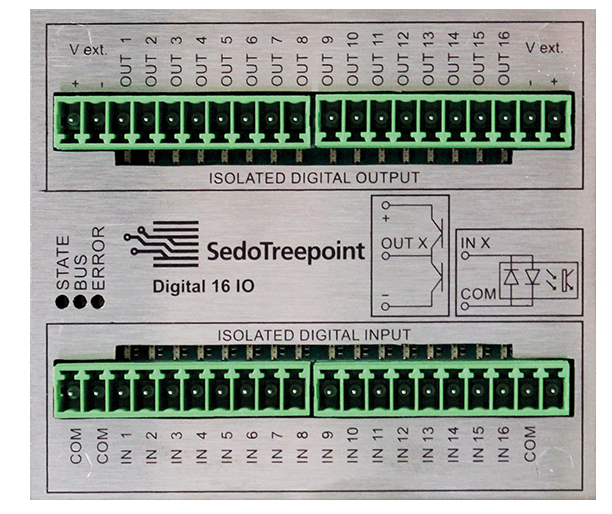

Digital 16 IO
Digital 8 IO Relay
Up to 6 I/O-boards via PROFIBUS DP® gateway, in an aluminum rail housing.
Switchable digital 16-IO – 24V/GND
Switchable analogue 4-IO – 0-20mA / 0-10 V / PT100
Digital 8-IO (relay output)
Simple address selection via rotary switch
Compatibility with Profi16/32
2 Fast counters (10Khz)
All inputs are equipped with green LEDs and all outputs with red LEDs.
All inputs and outputs are optical isolated.
Status-LEDs showing the actual status.
All connections equipped with plug-in terminals.
Ready to use PROFIBUS DP® cable in desired length on request.
