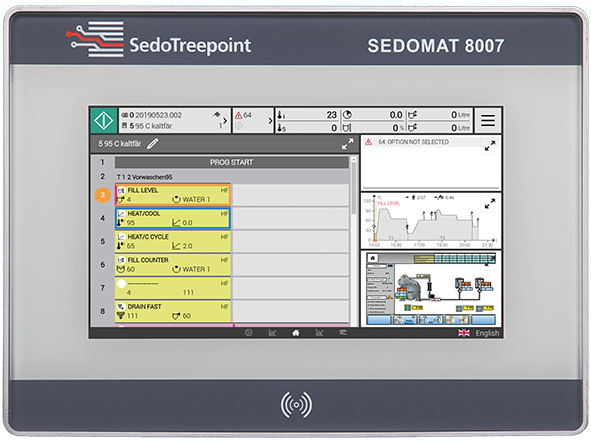

Sedomat 8007

Specially designed for lab machines and data acquisition

With it’s 7″ capacitive touch display, Sedomat 8007 is the smallest controller of the Sedomat 8000 Series. The compact size is the ideal choice for lab machines and for data acquisition. The controller includes a PLC which can be adapted with programming tools and can be optionally equipped with internal and external I/O boards to meet the different requirements of dyeing and finishing machines.

Connectivity

Learn more

Web based

Learn more

Data acquisition

Learn more

Unlimited applications

Learn more

Flexibility and
look ahead

Learn more

Impressions

Specifications

Column 1 Column 2
Bus systems**
  • CANopen®
  • PROFIBUS DP®*
  • Modbus RTU*
Internal I/O board
  • Embedded internal I/O board IO16/2 with 16 digital I/Os, 4 software counters (2 kHz), 2 hardware counters (10 kHz), 2 analog inputs, 2 analog outputs*
SedoIO
  • External SedoIO modules*
IoT
  • MQTT
  • OPC UA
Connectors
  • RS232 and RS485 interface
  • 2 Ethernet RJ45, 1 GBit/s
  • 2 USB ports (USB 2.0/USB 3.1)
Column 1 Column 2
Special
  • Onboard Wi-Fi
  • RFID reader*
  • mPCIe slot
  • mSATA slot
Protection
  • IP67
Power supply
  • 24V DC, 1.0 A
Ambient temperature
  • 0 – 60°C (32 – 140°F)
Display
  • 7.0″ capacitive touch display
Dimensions
  • 218 x 160 x 65 mm (wxhxd)
Panel cut-out
  • 203 x 147 mm (wxh) ± 1mm

*Optional configuration, customized to individual needs. **Further bus systems on request.
